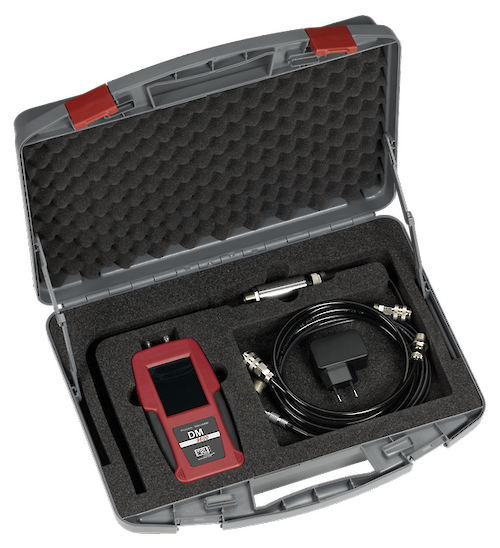

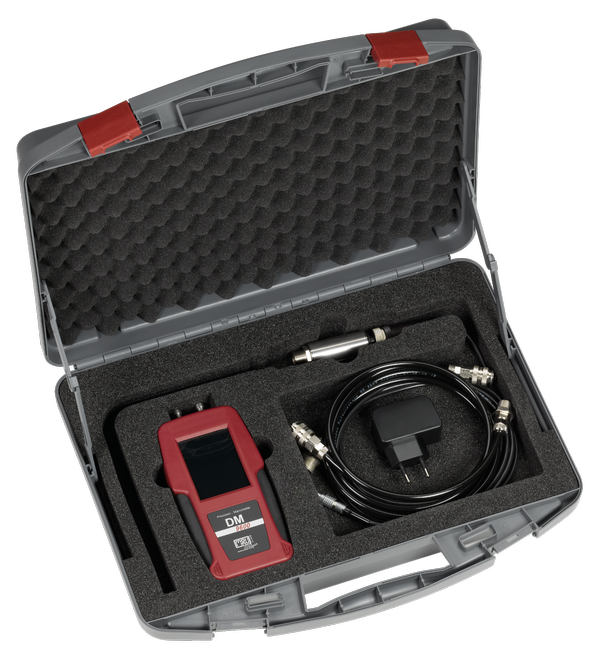

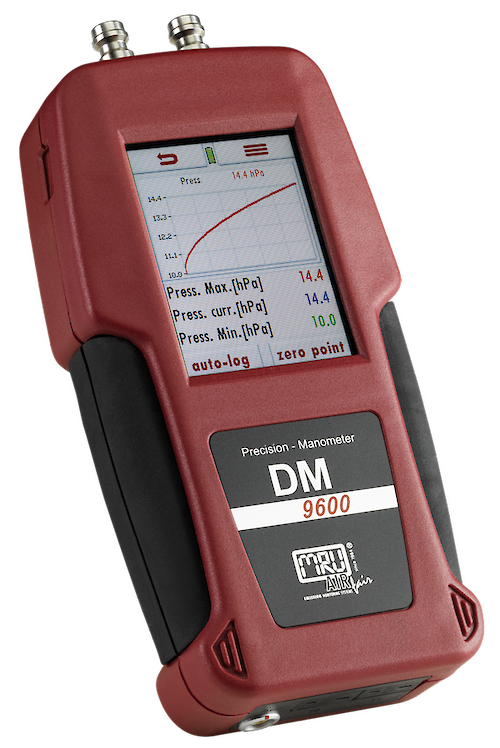

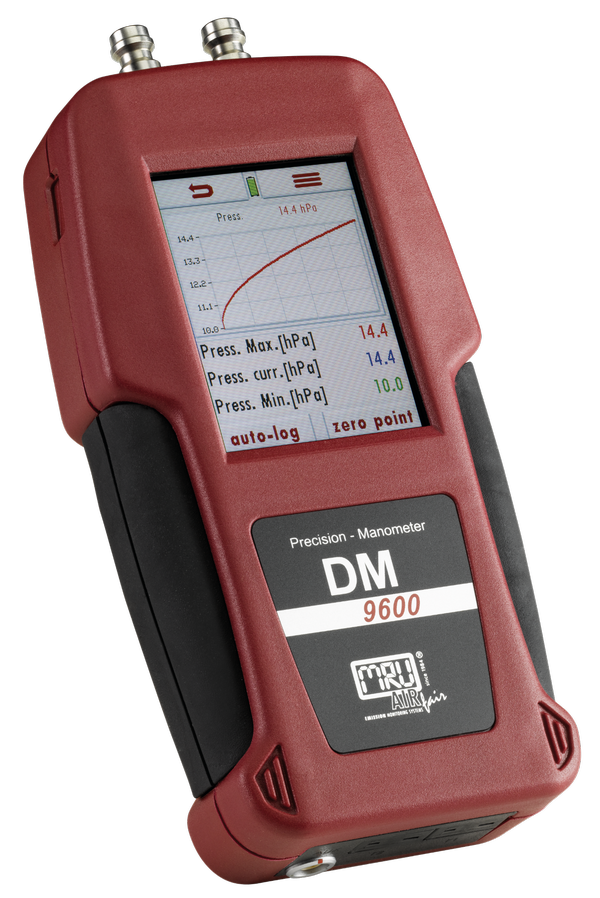

DM 9600 CHP
Precision Manometer for numerous pressure-, differential pressure- and temperature-measurements at CHP engines
- Data transfer via Bluetooth to App
- Long-term stable pressure sensor with a range of up to 10 bars (145 psi)
- Optional external pressure transmitter for pressures up to 10 bars (145 psi)
- Twin K-type thermocouple sockets for temperature measurements
- Optional gas leackage detector
- Modern, rugged unit with bluetooth, colour touch screen, USB, SD-Card, etc.
Basic-Equipment
- Electronic, long-term stable pressure sensor for up to 10 bars (100 psi)
- Twin K-type (NiCrNi) thermocouple temperature sockets
- Indication in hPa / mbar / bar / psi / mmHg / inchHG / cmH2O / inchH2O
- Temperature indication optionally as °C or °F
- Bluetooth for wireless data transfer to MRU4u app (Android & IoS)
- AUX connector for external pressure transmitter or gas sniffer
- USB interface for cable data transfer and battery charger
- Internal data storage for thousands of measurements!
- High volume data storage to SD card (CSV format)
- Min/Max recording, programable average value
- Automatic and continuously monitoring of pressure/negative pressure
- Stainless steel fast coupling connectors
- Brilliant 2,8" TFT touchdisplay
- Glass-fiber reinforced housing with integrated magnets
- High energy Li-Ion battery, Auto-Off-Function
- Wall plug battery charger (EU only) with USB cable
Technical Data
| Measuring range | |
| Measuring range | internal sensor: 0…10 bar (145 psi) external sensor: 10 bar (145 psi) |
| Dimensions and other data | |
| Weight | approx. 400 g |
| Measuring units | mbar/ bar/ hPa/ psi/ mmHg/ inchHG/ cmH2O/ inchH2O |
| Zero point | Automatic |
| Display | 2.8" colour TFT, touchscreen |
| Interfaces | Mini-USB, Micro-SD, Bluetooth, IR for printer and AUX socket for ext. pressure transmitter and leackage detector |
| Battery capacity | approx. 20 hours with Lithium-Ion battery |
| Dimensions | (W x H x D) 82 x 169 x 36 mm |
| Data storage | internally 10.000 data sets or ext. Mirco-SD card |
| Data transfer | to MRU4win PC-software or MRU4u App |
| Power supply | wall plug USB-charger 100…240 Vac, 50…60 Hz |
