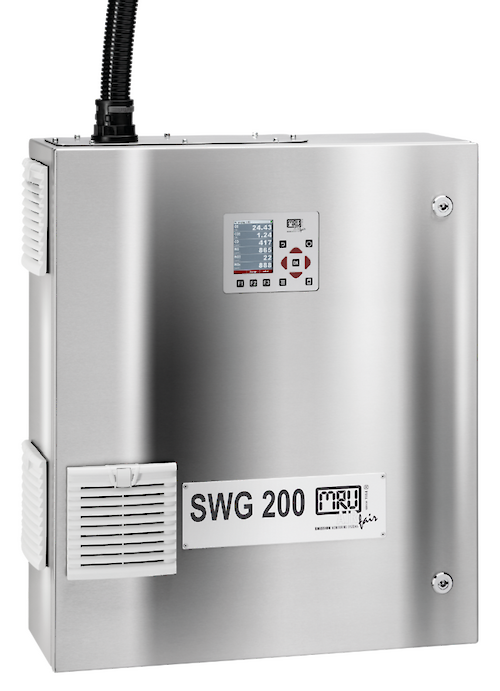

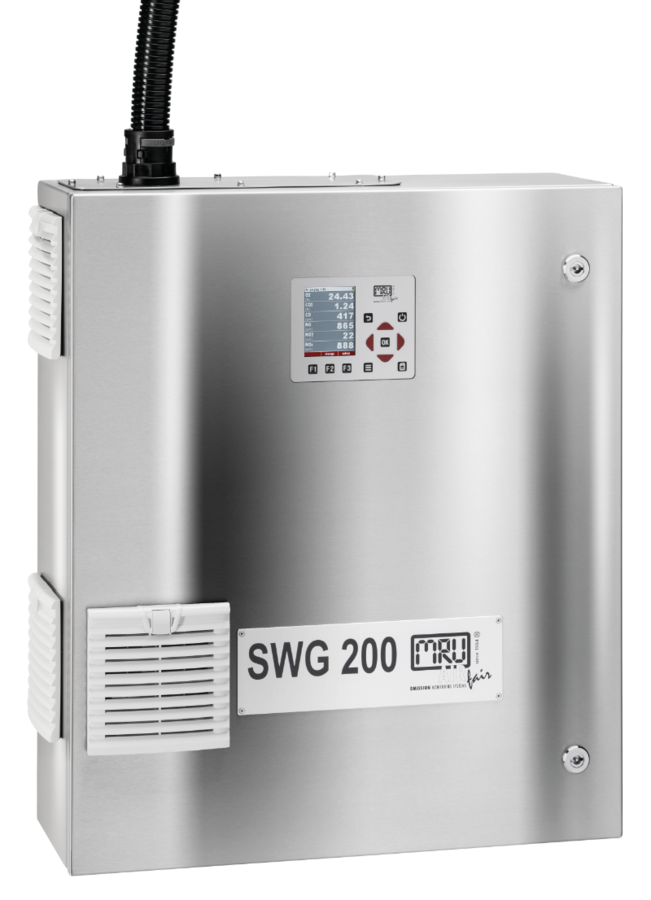

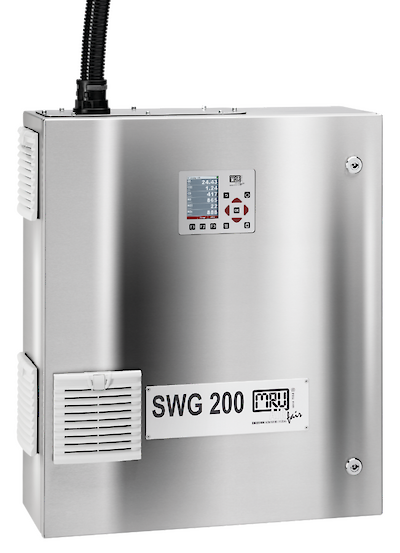

SWG 200 CEM
Stationary gas analysis system for continuous process gas and emission monitoring
Outstanding benefits:
- Use of optimized NDIR technology with improved accuracy without zero point drifts
- O₂ measurement with an electrochemical or a paramagnetic sensor
- Automatic zero point in clean ambient air through separate calibration gas inlet
- Automatic calibration for up to four gas cylinders
- Double stage Peltier gas cooler with two automatic condensate pumps
- Cold/dry gas extraction at a low flow volume of 1 l/min
Temel Donanım
- Stainless steel cabinet with monitored fan ventilation
- Included dual heat exchanger Peltier gas cooler with two automatic condensate draining pumps
- Efficient sample gas filtration using PTFE sintered particulate filter
- Regulated sample gas pump with sample gas flow monitoring and alarm
- Filtration of acid gases to protect the internal sample gas flow sensor
- Solenoid valve for auto-zero with clean ambient air
- Solenoid valve for calibration gas, with aluminium fine pressure regulator at cal. gas inlet port
- Human machine interface with colour TFT display, keyboard and standard RS485 interface (Modbus RTU)
- All password protected, intuitive software guided menu, with diagnosis software and logbook
- Power supply analyser only 230Vac / 47-63Hz / 120W (110Vac power supply on request)
- Total length of all heated sampling lines more than 60m, requires 3-phase power supply (L1 ; L2 ; L3 ; N ; PE)
- Clean indoor mounting place, preferably air conditioned
- Outdoor mounting place in clean, +5°C to 45°C ambient, with mandatory sun & rain protection (user scope)
Teknik Bilgi
| Measuring range | |
| O2 | (electrochemical) 0 ... 25 % |
| O2 | (paramagnetic) 0 ... 25 % |
| NO | (NDIR) 0 ... 200/4.000 ppm |
| NO2 | (NDIR) 0 ... 150/1.000 ppm |
| SO2 | (NDIR) 0 ... 150/4.000 ppm |
| CO2 | (NDIR) 0 ... 40 % |
| CO | (NDIR) 0 ... 200/10.000 ppm |
| N2O | (NDIR) 0 ... 100/500 ppm |
| CH4 | (NDIR) 0 ... 500/10.000 ppm |
| C3H8 | (NDIR) 0 ... 200/5.000 ppm |
| H2S | (electrochemical) 0 ... 2.000, overload < 5.000 ppm |
| H2 | (electrochemical) 0 ... 1.000 ppm, overload < 2.000 ppm |
| Dimensions and other data | |
| Zero point deviation | negligible due to automatic zeroing |
| Deviation | less than 0.2% of the measuring range per month |
| Calculated components | NOx: NO + NO₂, calculated ppm or mg / m3, user-selectable O₂ reference combustion calculations (efficiency, heat loss) on special request |
| Display | Illuminated 3.5 "TFT color display |
| Interfaces | Illuminated keyboard, password-protected operation 4 analog outputs 4 ... 20 mA, galvanically isolated, max. load: 500 R 2 alarm relays, potential-free contacts: 24 Vdc, 5 A Data storage and data logger on SD card RS 485 digital interface (Modbus RTU DIN rail RS 485, to ProfiBus converter or to Ethernet converter |
| Gas sampling probe | HD gas sampling probe, heated ceramic filter with backpurge, or gas sampling probe HD-GW, heated glass wool filter, or LD gas sampling probe, unheated with in-situ sintered metal filter, heated or unheated gas sampling line, PTFE DN 4/6 mm |
| Gas conditioning | Thermoelectric gas cooler (Peltier) with constant +4 ° C dew point Teflon particle filter, internal Viton tubing Monitored and regulated gas sampling pump Constant gas flow of 50 l/h Gas inlet pressure: -200 ... +20 mbar (hPa) Sample gas outlet: atmospheric pressure |
| Housing | Stainless steel housing, continuously monitored housing ventilation with alarm, antifreeze heater 200 W (option) |
| Operating temperature | (+5 ... +45 °C) or (-10 ... +45 °C) with housing heating |
| Power supply | Universal: 90 ... 240 Vac, 47 ... 63 Hz, 120 W (420 W with heating) |
| Protection | IP 54 |
| Dimensions | (B x H x T) 700 x 600 x 210 mm, suitable for wall mounting |
| Weight | approx. 50 kg |
